· - din inox
· - conform din DIN 862
· - cu surub de blocare
· - cu ajustaj fin
Tabel informatii suplimentare produs

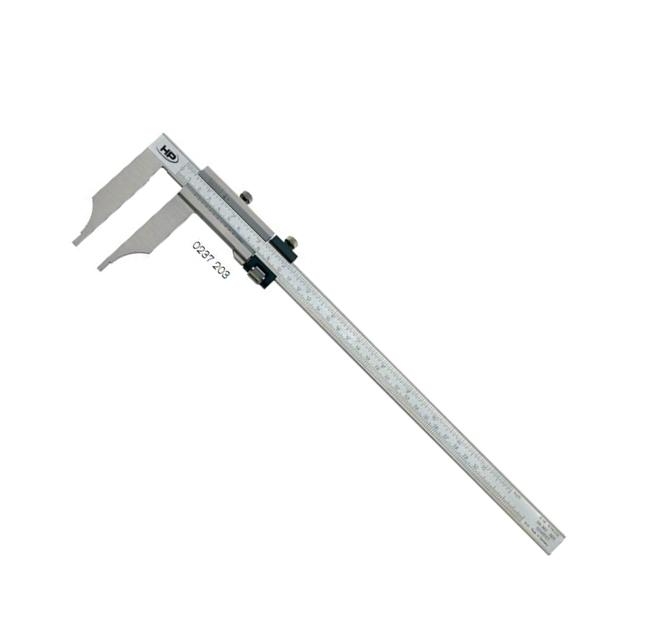

Vezi tabelulSubler analogic 200 - 3000mm - 0237
|
Gama de masurare (mm) |
Lungimea ciocurilor (mm)
|
Citire (mm)
|
Cod produs |
|
Vernier satinat |
|||
|
200 |
80 |
0,05 |
0237 201 |
|
250 |
80 |
0,05 |
0237 202 |
|
300 |
90 |
0,05 |
0237 203 |
|
400 |
125 |
0,05 |
0237 205* |
|
500 |
150 |
0,05 |
0237 208* |
|
600 |
150 |
0,05 |
0237 211* |
|
800 |
150 |
0,05 |
0237 214* |
|
1000 |
150 |
0,05 |
0237 218* |
|
1250 |
200 |
0,05 |
0237 222** |
|
1500 |
200 |
0,05 |
0237 224** |
|
2000 |
200 |
0,05 |
0237 226** |
|
3000*** |
200 |
0,05 |
0237 230 |
|
Vernier + scara satinata |
|||
|
200 |
80 |
0,05 |
0237 501 |
|
250 |
80 |
0,05 |
0237 502 |
|
300 |
90 |
0,05 |
0237 503 |
|
400 |
125 |
0,05 |
0237 505* |
|
500 |
150 |
0,05 |
0237 508* |
|
600 |
150 |
0,05 |
0237 511* |
|
800 |
150 |
0,05 |
0237 514* |
|
1000 |
150 |
0,05 |
0237 518* |
|
1250 |
200 |
0,05 |
0237 522** |
|
1500 |
200 |
0,05 |
0237 524** |
|
2000 |
200 |
0,05 |
0237 526** |
